Description

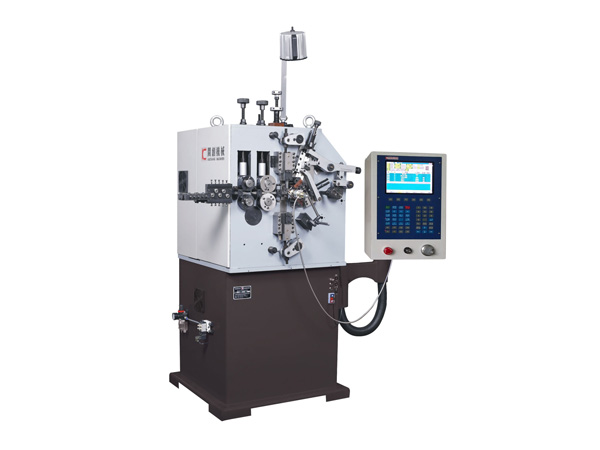

KCT-26A 2/3 Axis CNC High-speed spring coiling machine, referred to as the 26-type compression spring machine or 26-type spring coiling machine, processing line diameter is φ0.8-3.0mm, suitable for processing a variety of products such as precision compression spring, compression spring, spring tower, convex/concave spring, battery springs, toys spring, wave spring, sewer spring and spring tube.
Parameters
| 機 型 | Model | KCT-226A | KCT-326A |
| 軸 數 | Axis Count | 2 軸 | 3 軸 |
| 加工線徑 | Wire Size Range | φ0.8-3.0mm | φ0.8-3.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ60mm | φ60mm |
| 最大送線速度 | Max Feeding Speed | 120m/min | 120m/min |
| 送線輪組數 | Wire Feeding Wheel Count | 2 pairs(組) | 2 pairs(組) |
| 送線伺服電機 | Feeding Servo Motor | 2.7kw | 2.7kw |
| 凸輪伺服電機 | Cam Servo Motor | 2.7kw | 2.7kw |
| 螺距伺服電機 | Pitch Motor | ---- | 1.0kw |
| 送線指令值 | Feeding Length Value | ±0.1～±9999.99 | ±0.1～±9999.99 |
| 凸輪指令值 | Cam setting Value | ±0.1°～±359.9° | ±0.1°～±359.9° |
| 機器尺寸 | Dimension(LxWxH) | 710x720x1460mm | 710x720x1460mm |
| 機器重量 | Weight | 1200kg | 1900kg |
| 電 源 | Power AC | 3-380VAC 50HZ | 3-380VAC 50HZ |
Our company's KCT-26A 2/3 Axis CNC High-speed spring coiling machine uses Taiwan computer control system, citing Japan import SANYO servo motor and high precision bearing, etc., with left and right direction tool holder. The models ( 26-type compression spring machine ) standard for two axis, can also be ordered with three axis, free spool, cam shaft and pitch axis, the axis can operate independently or with synchronous operation, forming speed, stable performance and high accuracy. Among them, the third axis is for KCT-26A computer compression spring machine push rod spacing knife increased, not only more convenient spring product forming, save debugging machine time and wire rod cost, but also can complete more difficult requirements of spring products.
